EATON WEATHERHEAD
1168X2.5A
SKU 1168X2.5A

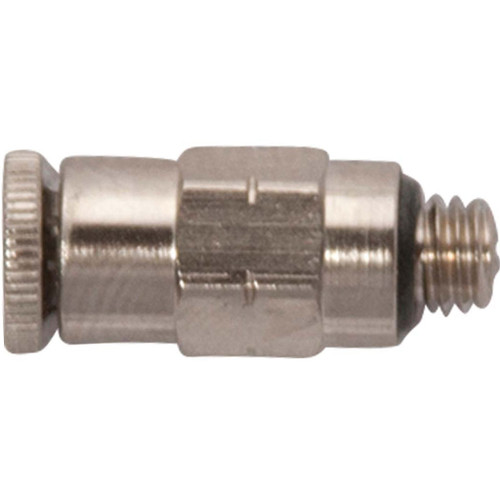

5/32" Tube O.D. x 10-32 MPT, Push Connect Plus Male Connector - 1168X2.5A

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
www.p65warnings.ca.gov

Pkg Qty: 5

  • Push Connect Plus, Male Connector has a captured Teflon® ring around the base of the hex shoulder, seals similar to a reusable (SAE type) seal eliminates thread sealant and loose particles associated with thread sealant
  • Push Connect Plus has a lower profile for those tight places
  • The new brass collet is designed for use with all types of tubing from Nylon to 90A durometer Polyurethane, including Polyethylene, and PVC tubing
Type Push Connect Plus
Style Male Connector
Size 5/32" x 10-32
Material Brass
Tube O.D. 5/32"
MPT 10-32
Temp Range -40° F to 200° F
Pressure Up to 250 psi depending on tube size
Sealing Method O-Ring of Buna-N Construction
