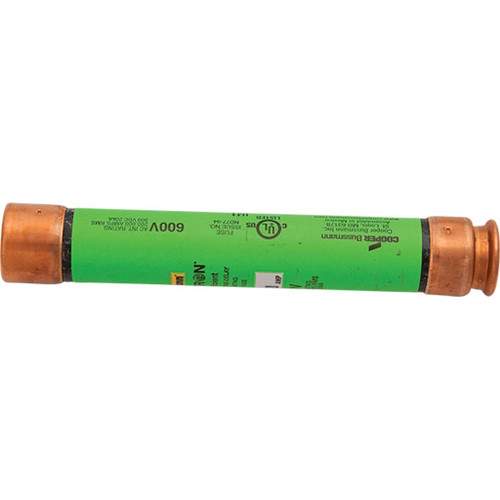

.5 Amps (FRS-R-1/2), Time-Delay Cartridge

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm

Pkg Qty: 5
  • Dual-Element, Time-Delay fuses are ideal for power panelboards, motor control centers, combination starters and machinery disconnect applications
  • Rated at 600 VAC or 300 VDC
Type Cartidge
Style Time-Delay
Voltage 600 VAC
Amps .5
Material Fiber
Element Dual
Length 5"
Dia. .81"
Series FRS-R
Industry No. FRS-R-1/2
Indicating / Nonindicating Nonindicating
Class RK5
Body Style Cylindrical
Interrupt Rating 200kA
Standards CE, Std. 248-12, Class RK5, UL Listed, Guide JDDZ, File E4273, CSA Certified, Class 1422-02, File 53787
Application Power Panelboards, Motor Control Centers, Combination Starters, Machinery Disconnects
