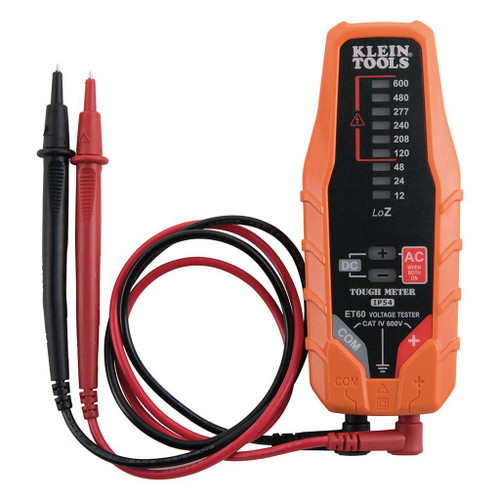

AC/DC Voltage Tester


California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm

Pkg Qty: 1
  • Tests AC voltages from 24V to 240V AC at four useful levels
  • Tests DC voltages from 32V to 330V at four levels
  • Built-in test lead holder on back of tester holds the leads in one of two positions: one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads
  • Test leads can be docked in the holder for convenient storage
  • Batteries not required; tester is powered by the applied voltage
  • Built to withstand a 9.9-Foot (3 m) drop
  • Safety Rating: CATIII 350V, Class 2, Double insulation
  • Ingress protection IP44 dust and water resistant
  • Pocket clip secures tester to pocket for reliable everyday carrying
Type Test Product
Style AC/DC Voltage
Frequency 50/60 Hz
Overall Length 4.45 Inch (113.0 mm)
Voltage AC Level Indicators: 24V, 48V, 120V, 240V; DC Level Indicators: 32V, 64V, 160V, 330V
Weight 1.8 oz (52.0 g)
Overall Height 1.19 Inch (30.0 mm)
Overall Width 1.05 Inch (27.0 mm)
Included Tester
Lead Length 9 Inch (23 cm)
Special Features Built-in Test Lead Holders on Back of Tester Spaced Correctly to Hold Leads for Testing Tamper-Resistant US-style Outlets
Drop Protection 9.9' (3 m)
Pollution Degree 2
Standard CATIII 350V, CE
Display Analog LED
Ingress Protection IP44
Integral Lead Storage Yes
Tests Continuity No
Interchangeable Leads No
Application Measures AC/DC Voltage
