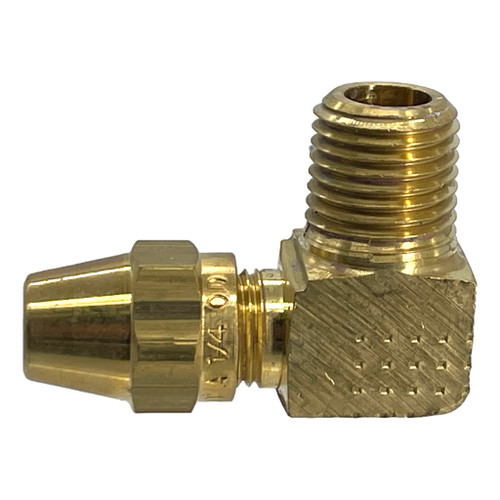

- DOT Air Brake Copper Tubing Sleeves are made of CA360 Brass.
- Copper Tubing fittings have the advantage of easy assembly - no tube preparation or flaring required.
- May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
- Meets specifications and standards of SAE and DOT
| Type | D.O.T. Air Brake Copper Tubing |
| Style | 45° Male Elbow |
| Size | 3/8" x 1/4" |
| Material | CA360 Brass |
| Tube O.D. | 3/8" |
| MPT | 1/4" |
| Pressure | 150 |
| Temp Range | -65° F to +250° F |
| Standards | SAE and DOT |
