TE CONNECTIVITY
STS14L22
SKU STS14L22

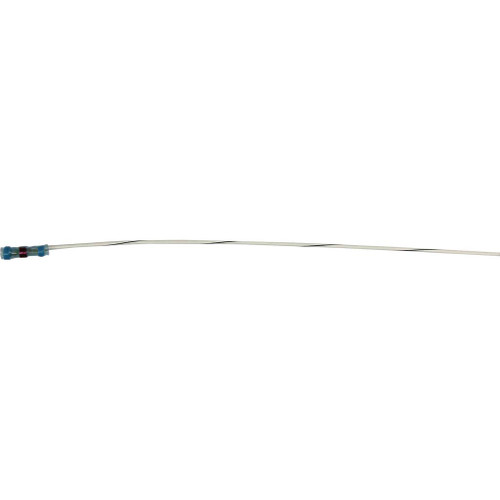

Shield Termination, M83519/2-10, 22 AWG

UPC:
39121446

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
www.p65warnings.ca.gov

Pkg Qty: 10

  • TE Connectivity SolderSleeve™ shield terminator is an immersion resistant terminator that meets Mil-Spec M83519/2-10
  • Ideal for use in shield-to-ground termination applications
Type Sealed Crimp Termination Splice
Style Solder Sleeve
Temp Range 125° C
Mil-Spec M83519/2-10
Max Wire Dia. 0.275
Wire Shield O.D. Max 0.17
Lead Wire AWG 22
Insulation Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride
Solder TYPE Sn63 per ANSI-J-STD-006
Flux TYPE ROL1 per ANSI-J-STD-004
Length 0.75
A Width 0.275
B Width 0.3
Effective Length 0.325
Meltable Ring Color Blue
