HI-LINE PREFERRED VENDOR
MS21071L3
SKU MS21071L3

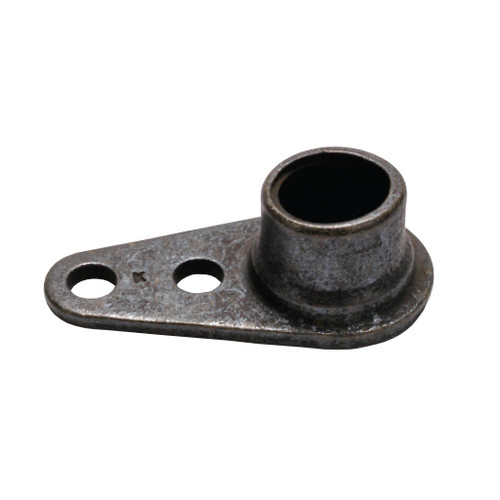

#10-32 One Lug Low Height Miniature Nutplate

UPC:
31161723
Pkg Qty: 25
  • Nut plates or anchor nuts are used in mounted applications where it is impractical to use hex nuts or where an attached nut is advantageous for ease of maintenance
  • Ideally suited for blind mount applications
Type Nutplate
Style One Lug Low Height Miniature
Size #10-32
Material Carbon Steel
Tensile Strength 125,000 psi
Temp Range 450° F
Finish Spec QQ-P-416 Type II, Grade/Class 2
Hardness 49 HRC Max
Series MS21071
Thread Spec 0.190–32 UNJF-3B
Lubricant Dry Film
Length (Max) 0.745
Width (Max) 0.328
Rivet Hole Offset 0.219
Height 0.250
Rivet Hole Style Plain
Axial Strength (Lbs) 2460
