HI-LINE PREFERRED VENDOR
MS21069L08K
SKU MS21069L08K

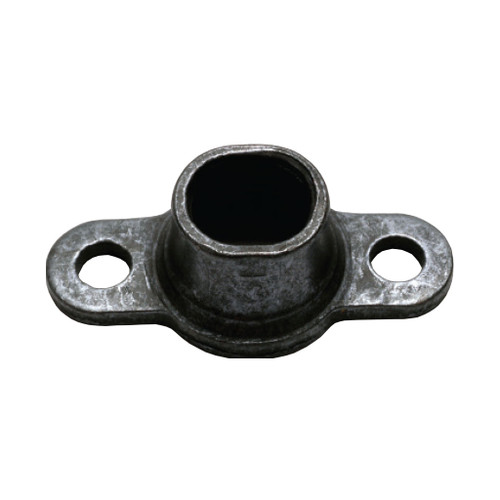

#8-32 Two Lug Low Height Miniature Nutplate
- UPC:
- 31161723
- Nut plates or anchor nuts are used in mounted applications where it is impractical to use hex nuts or where an attached nut is advantageous for ease of maintenance
- Ideally suited for blind mount applications
| Type |
Nutplate |
| Style |
Two Lug Low Height Miniature |
| Size |
#8-32 |
| Material |
Carbon Steel |
| Tensile Strength |
125,000 psi |
| Temp Range |
450° F |
| Finish Spec |
QQ-P-416 Type II, Grade/Class 2 |
| Hardness |
49 HRC Max |
| Series |
MS21069 |
| Thread Spec |
0.164–32 UNJC-3B |
| Lubricant |
Dry Film |
| Length (Max) |
0.692 |
| Width (Max) |
0.297 |
| Rivet Hole Offset |
0.468 |
| Height |
0.250 |
| Rivet Hole Style |
Countersunk |
| Axial Strength (Lbs) |
1720 |
