HI-LINE PREFERRED VENDOR
HCB5525
SKU HCB5525

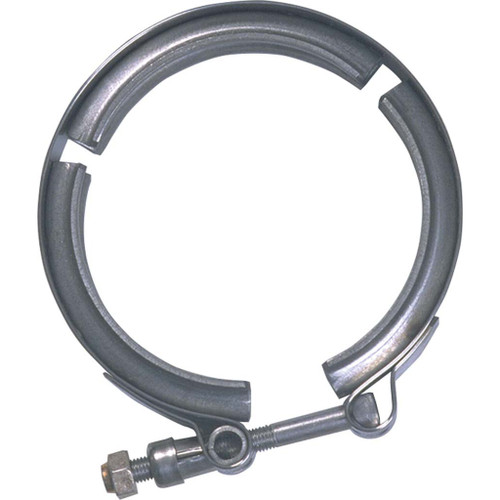

5.25 Nom. Dia. T-Bolt , V-Band Flange Joint Clamp

UPC:
31162906
Pkg Qty: 1
  • T-bolt, V-band flange joint clamps provide a fast and secure method to couple virtually any flanged joint
  • High strength and positive sealing are attained by using V-segments welded to a rugged stainless steel band
Tech Data (PDF)
Type Joint Clamps
Style V-Band
Size 5.25"
Material 300 Stainless Steel
Band Finish Clear
Bolt Material 400 Stainless Steel
Screw Finish Clear
Nut Hex size 5/16"
Nom. Dia. 5.25
V-Band Thickness 0.05
V-Band Inner Width 0.262
V-Band Height 0.141
Outer Band Thickness 0.035
Outer Band Width 0.75
